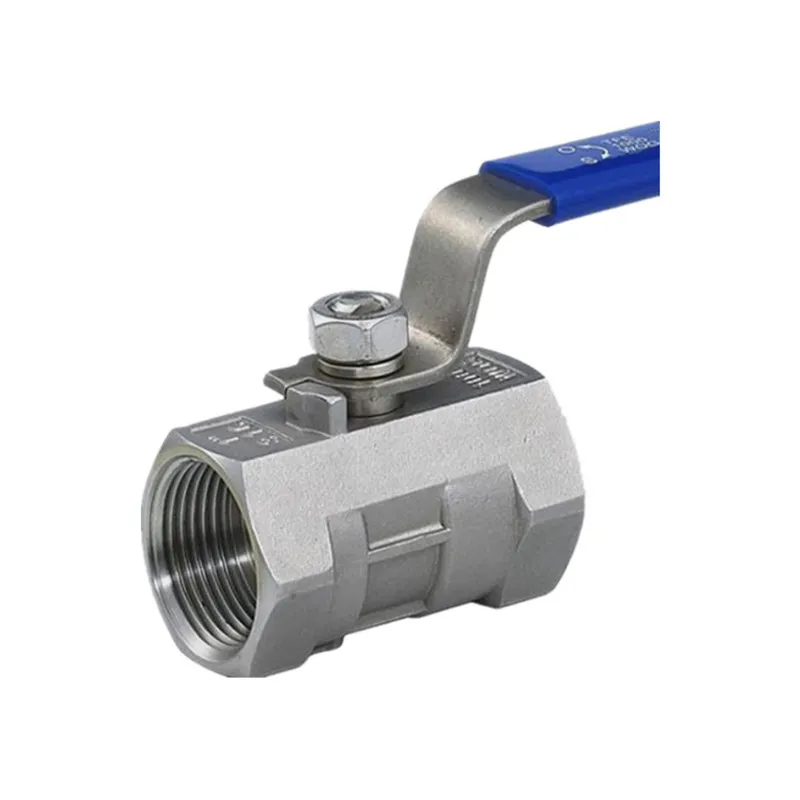

1pc valv boul fil (WCB, CF8, CF8M)
1pc fil valv boul
1. Presyon nominal: pn1. 0-32. 0 MPa
2. Nominal Dyamèt: DN 10-65, NPS 3/8 '' -2 1/2 ''
3. Metòd Koneksyon: ISO7/1
4. Drive Mode: Manyèl, Kovèti pou vè, Pneumatic, elektrik, idwolik, elatriye.
Deskripsyon pwodwi
|
Design estanda |
|
|
Spesifikasyon teknik: |
GB |
|
Design Creole: |
GB/T 12237 |
|
Fas a fas: |
GB/T 12221 |
|
Fen theaded: |
ISO7/1 |
|
Tès ak enspeksyon: |
JB 9092 |
|
Espesifikasyon |
|
|
Presyon nominal: |
1.6 / 2.5 / 4. 0 / 6.3 MPa |
|
Tès fòs: |
Pt2.4 / 3.75 / 6. 0 / 9.45 MPa |
|
Tès sele: |
1.76 / 2.75 / 4.4 / 6.93 MPa |
|
Tès la sele: |
1.76 / 2.75 / 4.4 / 6.93 MPa |
|
Tès sele gaz: |
0. 6mpa |
|
Materyèl kò valv: |
WCB (C) / CF8 (P) / CF8M (R) |
|
Apwopriye mwayen: |
Dlo / vapè / lwil pwodwi / asid nitrik / asid acetic |
|
Tanperati apwopriye: |
-29 degre -180 degre |
|
Materyèl nan pati prensipal yo |
||
|
Non. |
Non pati |
Materyo |
|
1 |
Nwa |
304/316 |
|
2 |
Spring machin pou lave |
304/316 |
|
3 |
Manch |
304/316 |
|
4 |
Nwa glann |
304/316 |
|
5 |
Anbalaj |
PTFE |
|
6 |
Vyolans gasket |
PTFE |
|
7 |
Tij |
304/316 |
|
8 |
Sou chèz |
PTFE |
|
9 |
Kò |
Wcb/cf8/cf8m |
|
10 |
Fèmen nwa |
304/316 |
|
11 |
Machin pou lave |
304/316 |
|
12 |
Bal |
304/316 |
|
13 |
Pwochen chèz |
PTFE |
|
Dimansyon prensipal yo ak dimansyon koneksyon |
||||||||||||
|
|
1/4'' |
3/8'' |
1/2'' |
3/4'' |
1'' |
1¼'' |
1½'' |
2'' |
2½'' |
3'' |
4'' |
|
|
d |
5 |
7 |
9 |
12 |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
|
|
L |
50 |
44 |
54 |
59 |
71 |
78 |
84 |
101 |
110 |
133 |
185 |
|
|
H |
32 |
32 |
40 |
40 |
45 |
55 |
55 |
65 |
95 |
100 |
130 |
|
|
W |
72 |
72 |
95 |
100 |
115 |
125 |
125 |
140 |
175 |
175 |
235 |
|
|
Pwa |
|
|
|
|
|
|
|
|
|
|
|
|
